Product features:
with blackbody, automatic correction, no fear of the impact of environmental temperature changes on thermal imaging
A. high sensitivity infrared camera
B. HD visible camera
C. It is used to detect human body temperature from 1.5m to 5m
D. Camera + embedded motherboard + blackbody integrated structure. Accurate forehead temperature measurement, filtering background high temperature effect

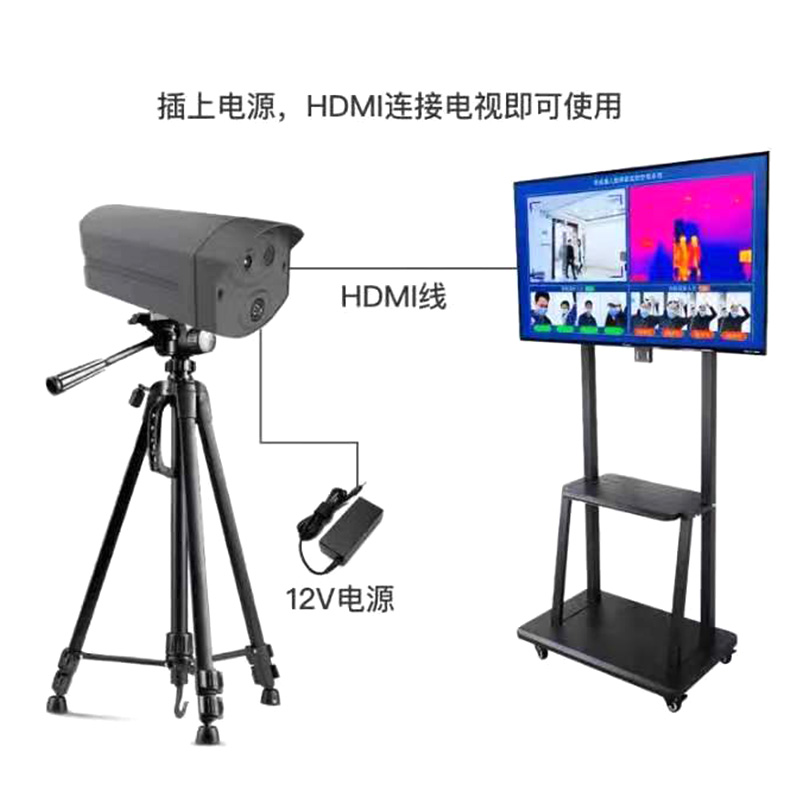

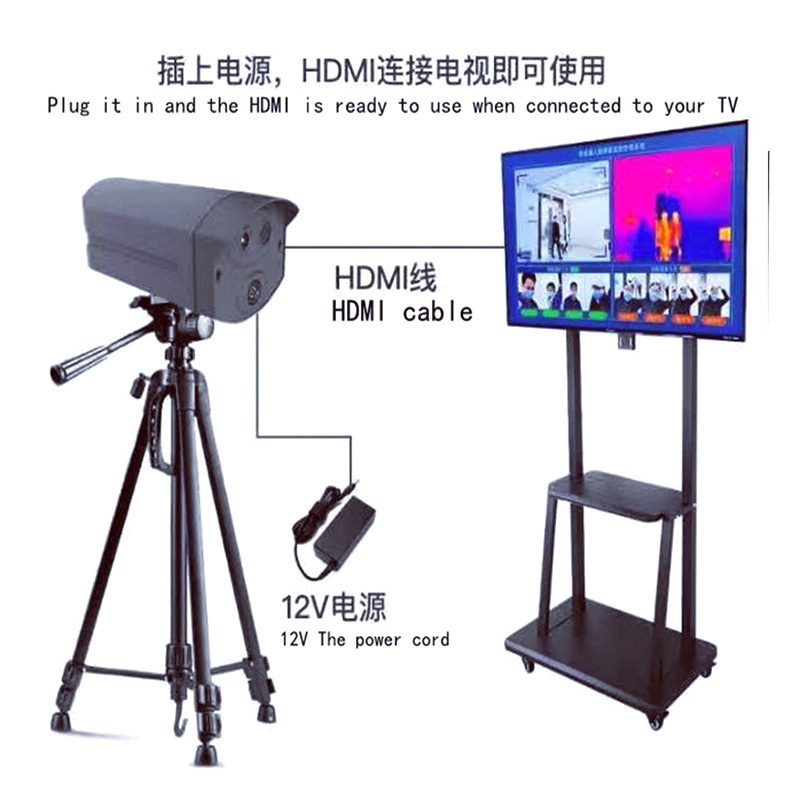

E. Does not need to configure the computer, directly connected to the monitor can display and various operations. Easily connect to the cloud for data analysis
JH-5CT vertical thermal imaging thermometer adopts artificial intelligence temperature measurement detection system. The equipment integrates high-sensitivity infrared high-definition visible light camera, high-precision blackbody, high-performance temperature measurement engine, non-medical, artificial intelligence driven, automatic alarm, visualization platform and high-precision thermal imaging detection system.
Get A Quote
Product Details

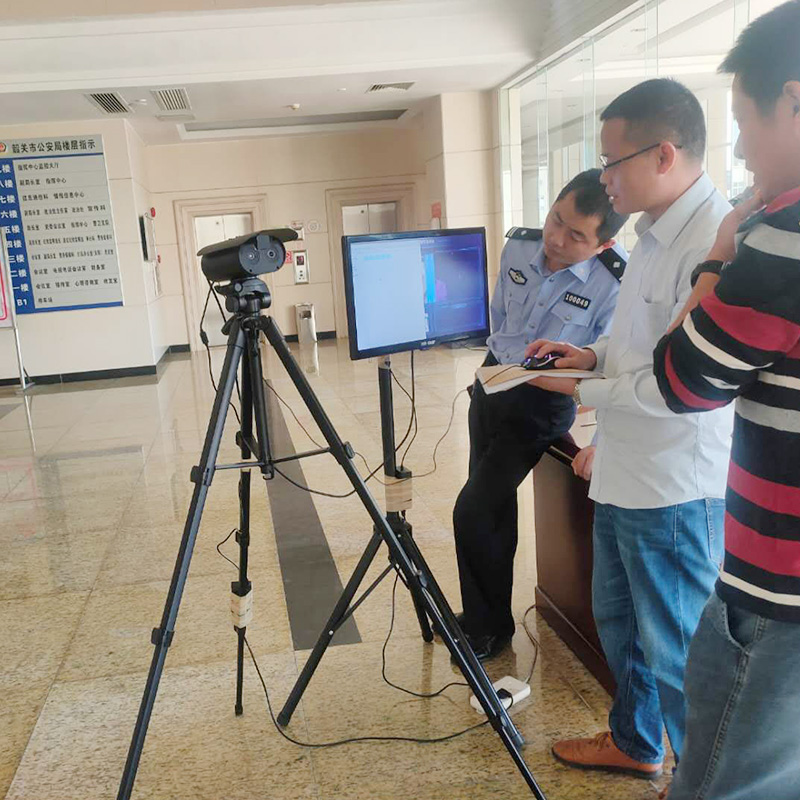

JH-5CT vertical thermal imaging thermometer is based on artificial intelligence algorithm and infrared thermal imaging temperature measurement technology, which can quickly check and warn people with fever symptoms, and accurately display the maximum temperature value. The equipment is widely used in airports, stations, schools, hospitals, factories, shopping malls and other large public places.

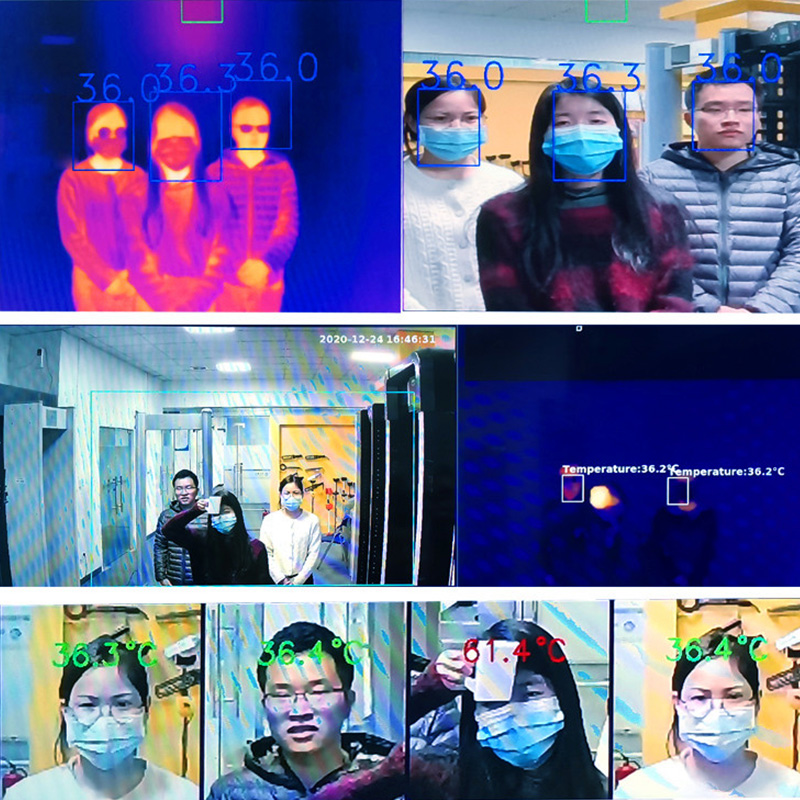

The system has automatic face recognition and capture, and can detect the thermal temperature of forehead in millisecond level. The accuracy of thermal temperature measurement is 0.3℃
JH-5CT vertical thermal imaging thermometer is based on manual automatic temperature algorithm, which can accurately identify and count the number of people passing by, and quickly analyze and display the temperature of individual personnel.
Fast detection
It can measure and detect a large number of people in 0.05 seconds.
High sensitivity
The temperature resolution of the instrument can reach ± 0.3 ℃, which is suitable for long-distance measurement of large flow and large area area.
Insensitivity measurement
The object is detected without any perception.
Excellent user experience
The system has strong operability, flexibility, scientificity and multi platform operation and display.
Product specifications
Visible camera | |
resolution | 2 megapixel |
Camera focal length | 6mm |
imaging device | CMOS |
Minimum illumination | 0.01LUX (color mode) - 0.001lux (black and white mode) |
SNR | > 56dB |
Voltage | 5V access |
Infrared camera | |
Detector type | uncooled infrared array sensor |
Resolution | 160 * 120 output (384 * 288) |
Pixel spacing | 17um |
The working band | 8-14 um |
Detector NETD | ≤ 60mk (F / 1300k, 50Hz) |
Frame rate | 15 Hz |
Temperature measurement data output | full range temperature output |
The temperature measurement range | 20 ℃ ~ 50 ℃ |
Field of view angle (calculated value) | 40 °× 30 ° |
Number of people inspected per minute | 150-200 |
Blackbody | |
Effective radiation area | 20 mm * 30 mm |
The area emissivity | 0.96 ± 0.02 |
Temperature range | (ambient temperature + 5 ° C) ~ (50 ° C) |
Temperature resolution | 0.01 ° C |
The stability accuracy | better than ± 0.1 ° C |
Heating time | < 2 minutes |
Main board parameters | |
SOC | Broadcom BCM2711 |
CPU | 64 bit 1.5GHz quad core (28nm process) |
GPU | Broadcom VIdeoCore VI@500Hz |
Bluetooth | Bluetooth 5.0 |
USB Interface | USB interface 2.0 * 2 / USB interface 3.0 * 2 |
HDMI | micro HDMI * 2 supports 4k60 |
Power supply | ype C (5V 3a) |
Network | WiFi 802.11ac, Gigabit Ethernet |
Multimedia | h.265 (4kp60 decode); |
H.264(1080p60 decode,1080p30 encode); | |
OpenGl es,3.0 graphics); | |
Other parameters | |
IR-cut automatic switch, backlight compensation, strong light suppression, automatic white balance | |
Working temperature | 0 ℃ ~ 40 ℃ |
Interface | RJ45, USB |
Installation environment | indoor or outdoor |
Installation method | support, wall mounting and hoisting |
Product size | 230mmx142.6mmx88.5mm |
Weight | 1.5KG |
