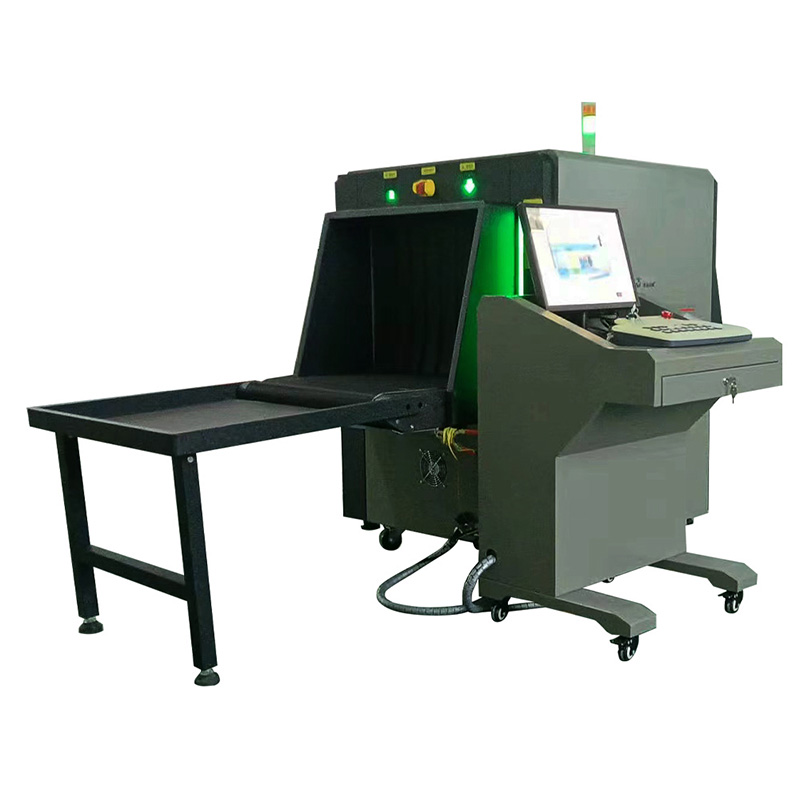

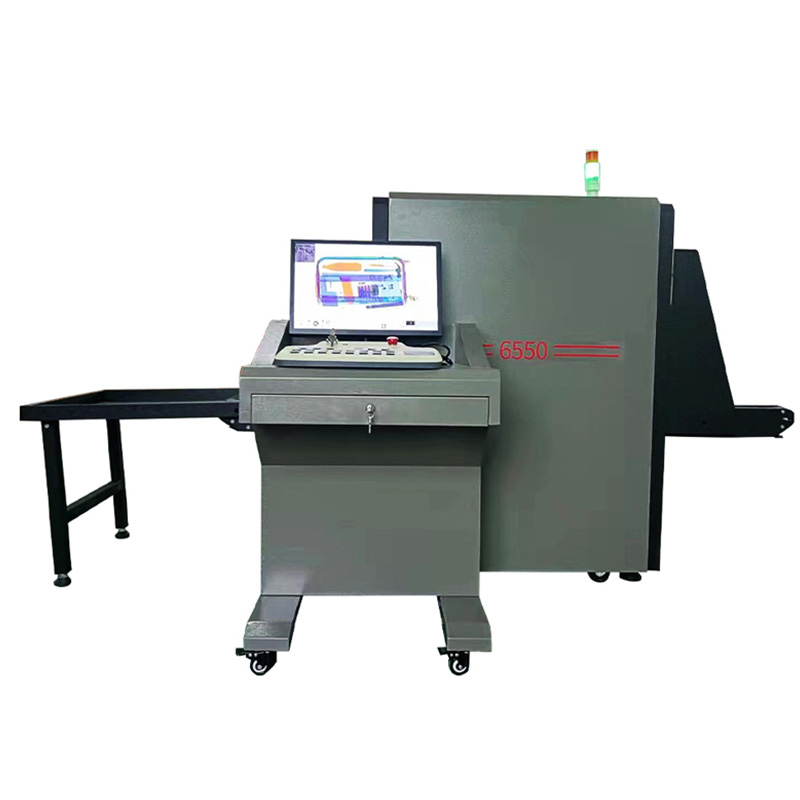

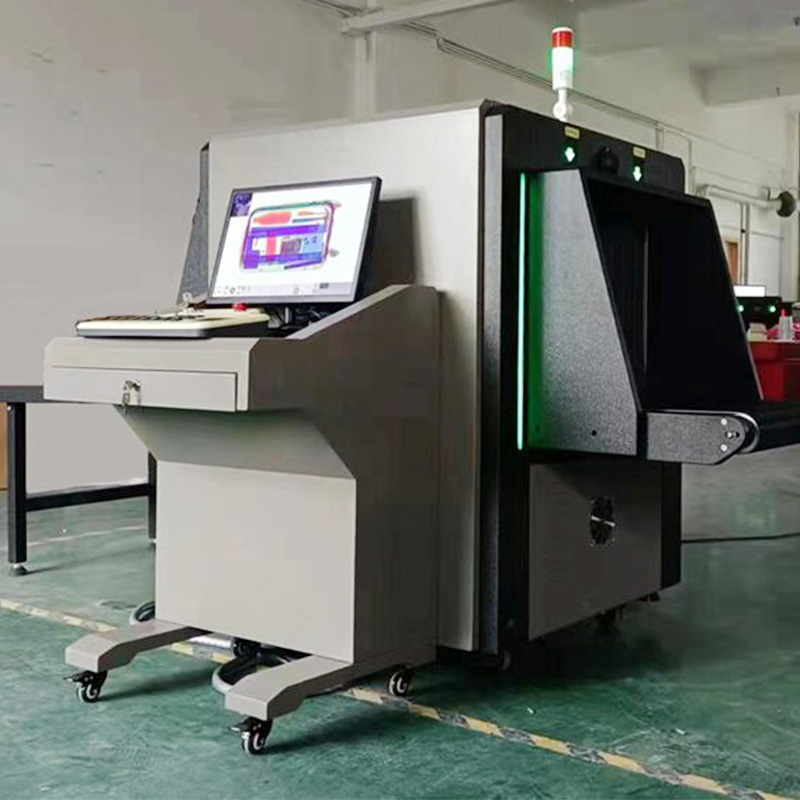

650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
650mm*500mm X ray baggage scanner machine
Get A Quote

Product Details

Dimension: 2040(L)*920(W)*1300(H)mm

Tunnel Size: 650(W)*500(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150kg

Rate of ray leakage: Less than 0.33 μ Gy/h

Resolution: Dia0.0787mm Metal Wire

Penetration: 43mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Generate model: Spellman from USA

X-ray Generate direct: Downward

X-ray Generate angle: 80 degree

X-ray Anode Voltage: 100-160Kv

X-ray Anode current: 0.4 -1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Operation temperature/Humidity:0-45degreeC/20%-95%(non-condensing)

Storage Temperature/Humidity:-20-60degreeC/20%-95%(non-condensing)

Operation Power: 220VAC(+/-10%), 50+/-3Hz

Power Consumption: 0.6 KW

Noise: Less than 56dB

Wooden Packing Size: 2140(L)*1020(W)*1400(H)mm

Overall weight: 450kgs
