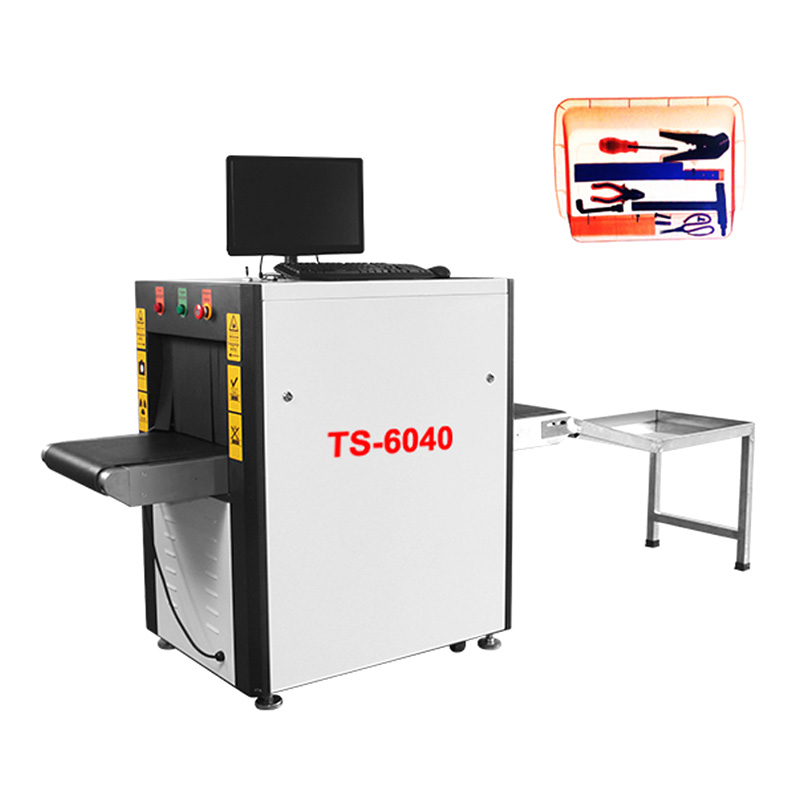

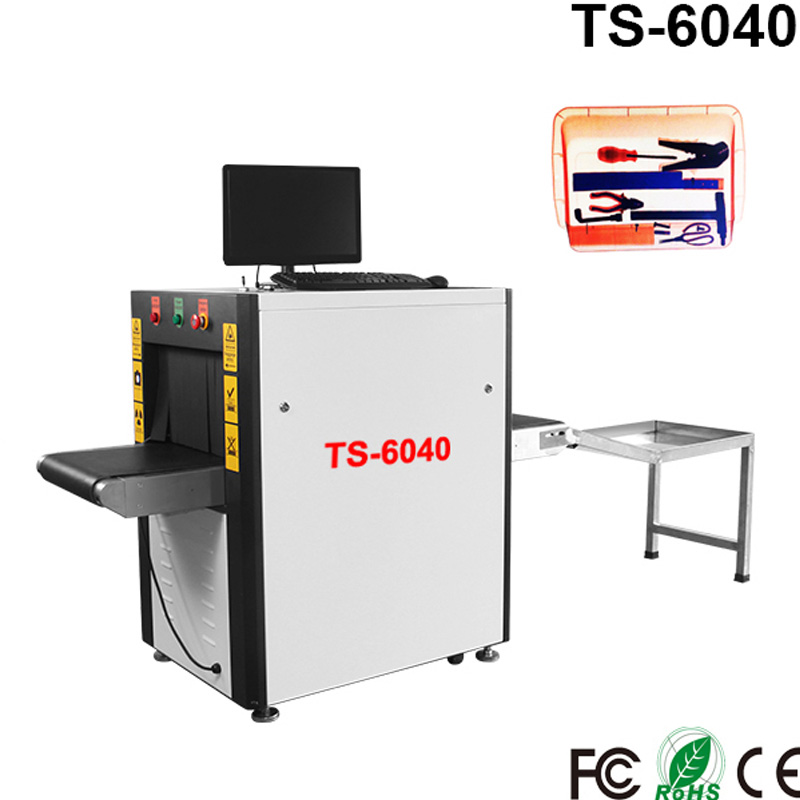

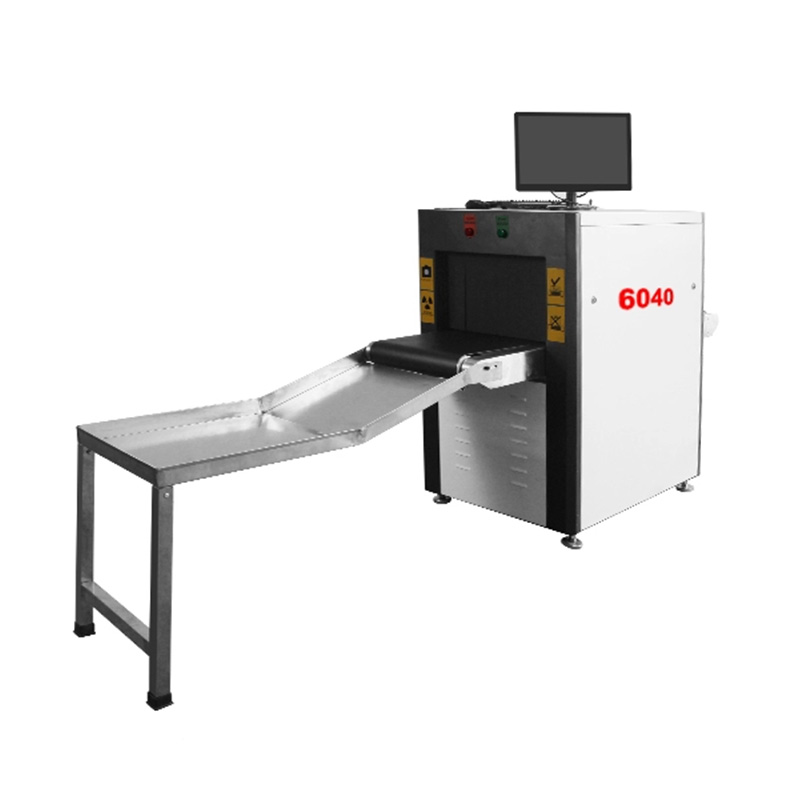

Work Principle

X - ray security inspection equipment has the baggage handling, X ray source and control part, signal

acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the

transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray

detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,

Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.

Specification

Dimension: 2007.5mm x868mm x1314 mm

Tunnel Size: 620(W)*420(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170kg

Rate of ray leakage: Less than 0.1 μ Gy/h

Resolution: Dia0.0787mm Metal Wire

Penetration: >34mmSteel

Film Safety: Guarantee ISO1600 Film

X-ray Generate model: Spellman from USA

X-ray Generate direct: Downward

X-ray Generate angle: 80 degree

X-ray Anode Voltage: 100-160Kv

X-ray Anode current: 0.4 -1.2mA

X ray Dose per inspection <1.25μSv

Wire Resolution: 38AWG guarantee, 40AWG typical

Spatial resolution: Level: dia1.0mm, Vertical: dia1.0mm

Tube Current:0.4 to 1.2MA(adjustable)

Tube Voltage:100 to 160kv(adjustable)

Cooling / Duty Cycle: Oil Cooling /100%

Operation temperature/Humidity:0-45C/20%-95%(non-condensing)

Storage Temperature/Humidity:-20-60C/20%-95%(non-condensing)

Operation Power: 220VAC(+/-10%), 50+/-3Hz

Power Consumption: 0.6 KW

Noise: Less than 56dB

Wooden Packing Size: 2680(L)*1760(W)*2330(H)mm

Overall weight: 770kgs

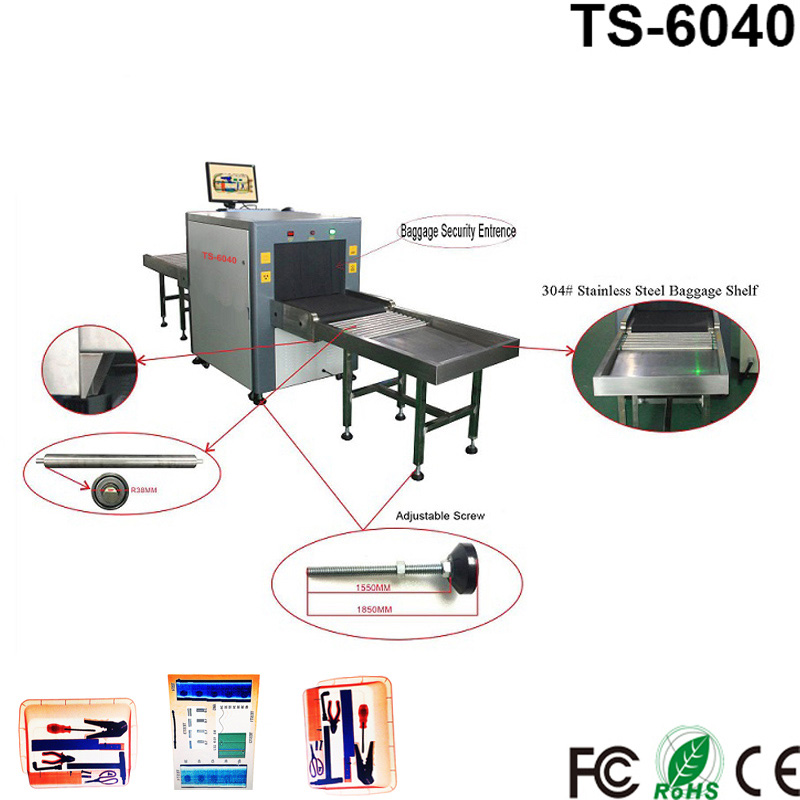

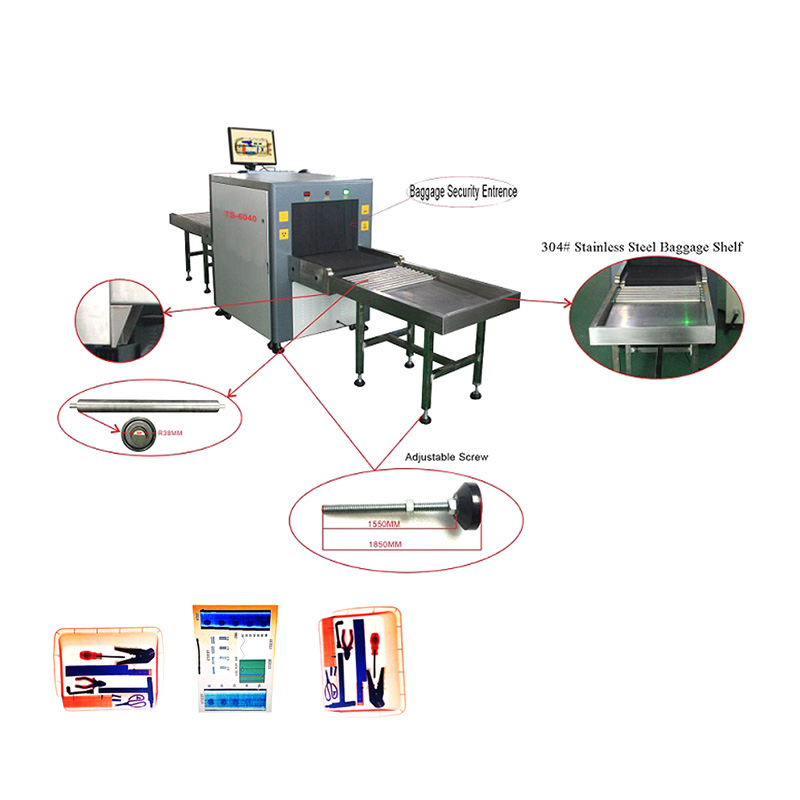

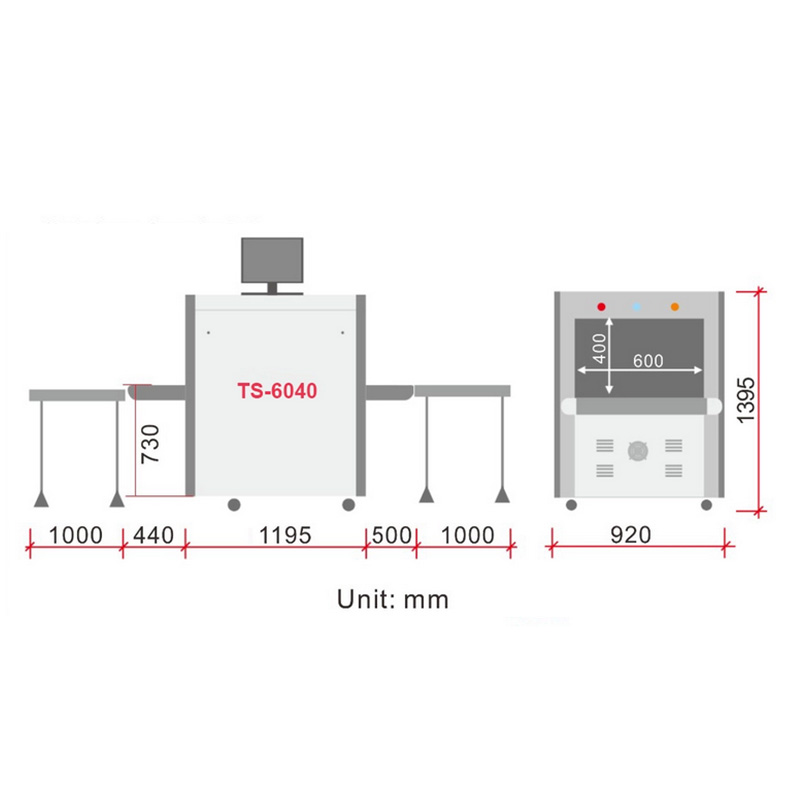

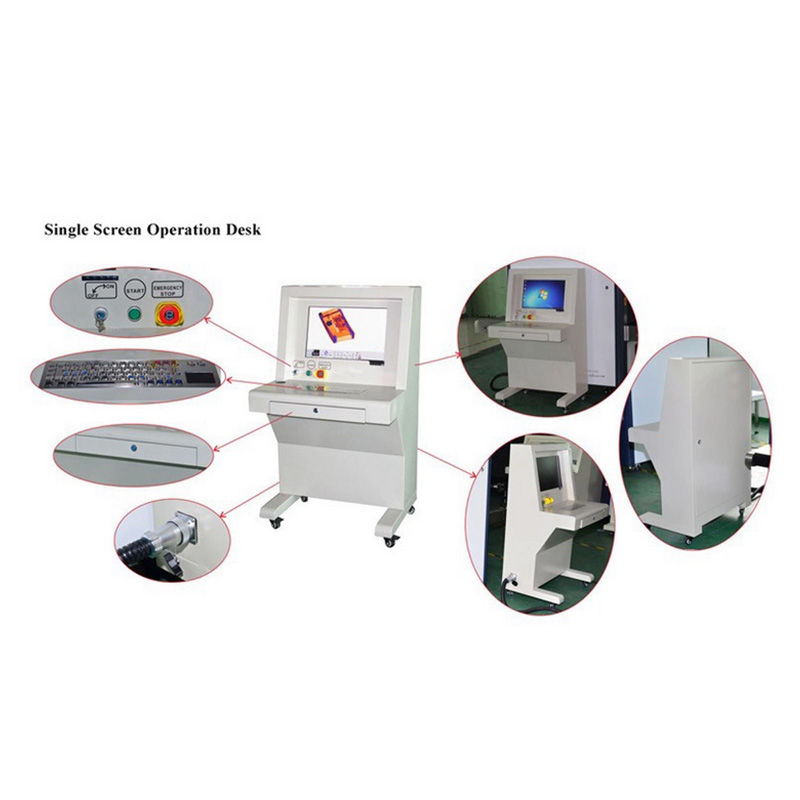

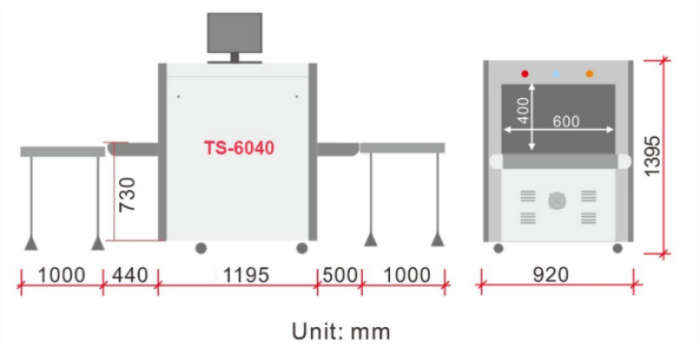

Schematic Diagram

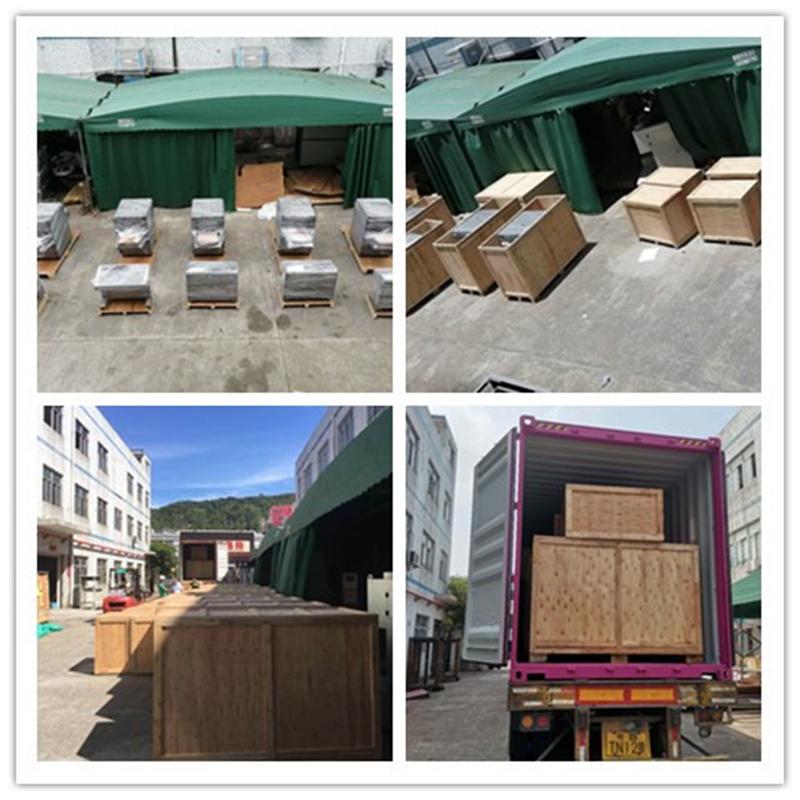

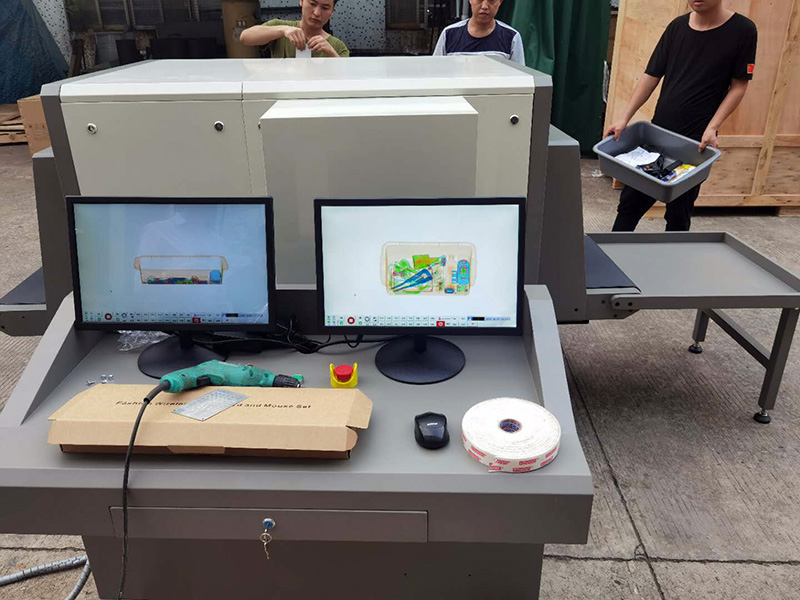

Packaging & Shipping

Services

We support OEM and ODM service, can print your logo according to your demand.
