Body termperature scanner &disinfection channel TS-BS1000
Body termperature scanner &disinfection channel TS-BS1000
Body termperature scanner &disinfection channel TS-BS1000
Body termperature scanner &disinfection channel TS-BS1000
Body termperature scanner &disinfection channel TS-BS1000
Body termperature scanner &disinfection channel TS-BS1000
Get A Quote

Product Details

technical parameters

4.1 Temperature measuring distance: 0.3-0.4 m

4.2 Temperature measurement range: 0°C~45°C

4.3 Minimum resolution: 0.1°C

4.4 Temperature measurement accuracy: ± 0.3 ° C (at room

temperature)

4.5 Camera: binocular in vivo detection, 2 million wide dynamic

4.6 DISPLAY: 13-inch HD LCD with resolution of 1920*1080

4.7 Recognition types:

temperature detection and full body

disinfection

4.8 External power supply: 110V-230V

4.9 Power consumption: 750W

4.10 Working environment: 0 ° C~45 ° C Indoor (without sunlightinterference)

4.11 Net weight: 400 kg

4. 12 overall dimension: 2000 (height) x1160 (width) x1800 (depth)mm

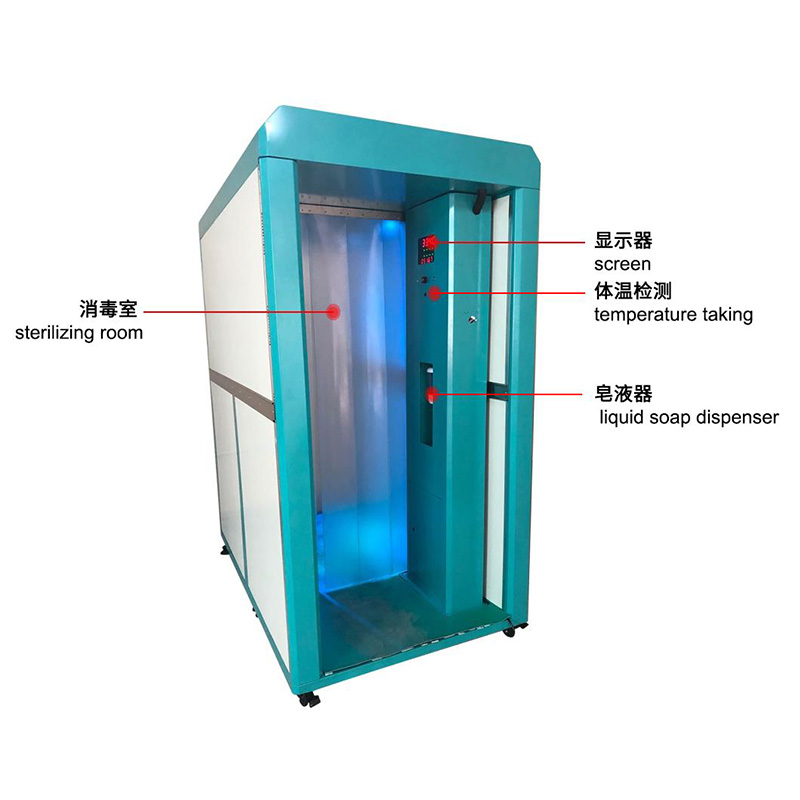

5. Equipment composition

5.1 ,Infrared temperature scanner

a. Built-in high-precision calibration non-contact infrared body

temperature scanner

b. Over-temperature alarm

5.2 Liquid soap dispenser

a. Infrared induction

b. Power supply by battery

c. Non-contact drip mode

5.3 Atomization room

a. with the crystal curtain at two side

b. Large capacity liquid atomizer sterilizer
